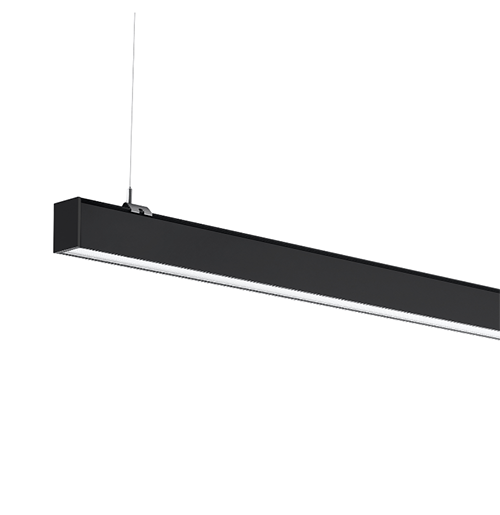

Suspended linear light Housing material: 6063-T5 Surface treatment: Anodizing, spraying Lampshade: PS+PMMA Luminous angle: 120° Light source: SMD2835 Light efficiency: 90Lm/W CRI≥80 Color temperature: 2700-7000K Input voltage: 100-277V/200-240V 50/60Hz Power supply: Built-in efficient and safe flicker-free driver Optional features: 0-10V dimming, DALI dimming, Color & Brightness adjustable, Emergency lighting, RGB Colorful Warranty: 5 years Certificates: CE, RoHS, FCC Protection grade: IP20 Electrical grade: I
Product family description
- Luminaire housing from extruded aluminium profile with 50mm wide light exit;
- Designed for continuous lighting systems suitable for office or public lighting
- Surface white powder coated; luminaire profile with pre-assembled converter unit can be pre-mounted; light inset can be installed without tools;
- High Performance Opalcover for uniform illumination; micro prismatic PMMA diffuser incl. diffuser film for homogeneous illumination and reduced luminance;
- Energy-efficient LEDs with very good colour rendering; binning initial ≤ 3 MacAdam; available in the light colours 3000K and 4000K; CRI≥ 80; min. 90 % of the luminous flux after 50000 hours;
- Protection IP 20; IO40
- optionally non-dimmable or DALI-2 control
|
Housing materials |
6063 extrusion aluminum alloy |
|
Size |
L600*w50*H75mm; 20W L1200*w50*H75mm;40W L1800*w50*H75mm;60W L2400*w50*H75mm;80W |
|
Housing color |
Black, White, |
|
Light source |
high efficiency SMD 2835 |
|
Color |
Warm white, neutral white, cool white |
|
Kelvin |
2700K/3000K/4000K/5000K |
|
CRI |
80+,90+, |
|
Luminous efficiency |
130lm/W @CRI80 ,150LM/w |
|
Beam angle |
120°(Opal diffuser);120°(Microprismatic UGR<19) |
|
Continuous 3 |
YES |
|
Finish |
Matt White; Black |
|
Voltage |
AC200-240V/ AC90-130V |
|
Dimming |
DALI, 0/1-10V, |
|
Driver |
PF>0.95 flicker-free isolated constant current driver |
|
Installation |
Suspended or surface mounted |
|
Warranty |
3 years; 5 years |
| Order Code | CCT | IP Rating | LED Power | System Power | CRI | System Output |
| LN60020W30K | 3000K | IP40 | 19.5W | 22W | Ra>80 | 1950LM |
| LN60020W40K | 4000K | IP40 | 19.3W | 20W | Ra>80 | 2000LM |
| LN120040W30K | 4000K | IP40 | 36.6W | 40W | Ra>80 | 2500LM |
| LN120040W40K | 3000K | IP40 | 36.6W | 40W | Ra>80 | 3000LM |
| LN180060W30K | 4000K | IP40 | 56.4W | 60W | Ra>80 | 5600LM |
| LN1240080W30K | 4000K | IP40 | 74.9W | 80W | Ra>80 | 7300LM |
