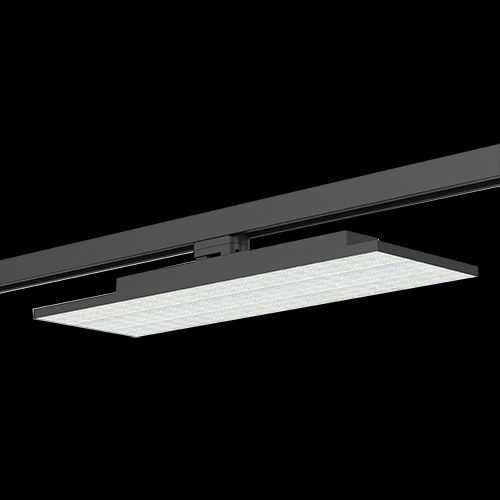

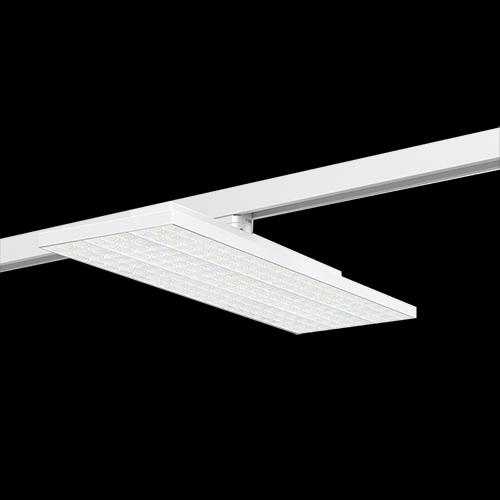

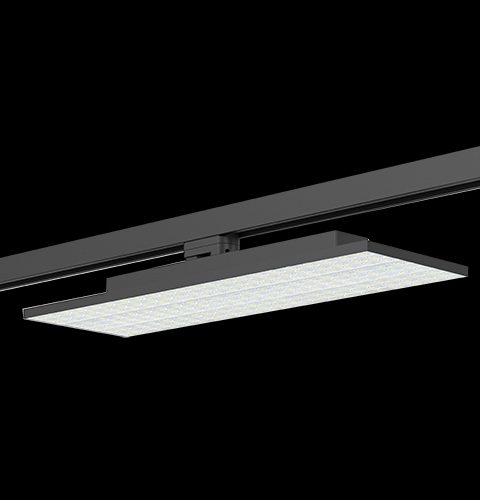

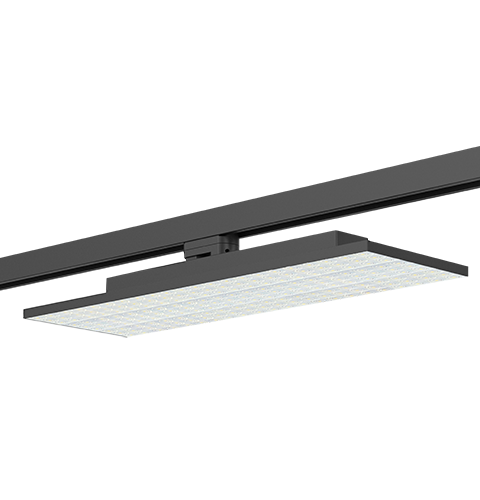

T.PANEL TRACK PANEL LIGHT HE

-4 wire 3-phase track adapter 350° flexible horizaontal rotation -Beam angle: 60º/90º/D20º (Double Asymmetric) -On/Off, DALI and 1-10V dimming driver for option -Wattage Adjustable dipswitch: 44W, 52W, 60W,68W

SKU: LM-TP68W-A Categories: ,

T.LINE Track Linear consists of a series of lights that run on a certain track structure. With universal track adapter, it can match existing European 3-circuit track rail brands, such as Eutrac, Global and Staff.

  • High luminous intensity, up to 160LM/W
  • L578*W188mm
  • Adopt PMMA efficient lens, lower decay and high UV tolerance
  • Unique aluminum housing(6063-T5) with good heat dissipation
  • Alumin pcb(PCB) with high thermal conductivity and thermal resistance.
  • Widely used in shopping malls, supermarkets, warehouses and brand chain stores
New T.PANEL series track linear light for large areas with efficient and powerful lighting systems.
and  provides the optimum solution and can be equipped with up to 10,880lm.
-Innovative design with quick installation
-High lighting perfermance to meet new requestments
-Rooms with high ceilings can also be efficiently and homogeneously illuminated. –
-Particularly energy-efficient optical lens systems which permit diffferent beam characteristics

TECHNICAL DATA

 Housing materials

Extrusion aluminum 6063-T5

 Size

L578*W188mm

 Housing color

Black, White,

 Light source

SMD LED

 UGR

 <24

 Kelvin

2700K/3000K/4000K/6000K

 CRI

80+,90+

 Luminous efficiency

160lm/W @CRI80;

 Beam angle

60° 90°  Double Asymetricals 20°

 Adjustable

 Wattage

40W 45W 50W 55W adjustable

 Voltage

AC220-240V

 Dimming

on/off , DALI

 Driver

PF>0.95 flicker-free isolated constant current driver

Track adapter

1/3 phase universal adapter

 Warranty

5 years

Model No. CCT CRI LED Power UGR LED Output Beam angle
LM-TP68W-A 3000k,4000K CRI 90/80 44W 52W 60W 68W Adjustable <24 160lm/W 60° 90° DS20°
LM-TP50W-A 3000K CRI97/90/80 50W <24 160lm/W 60° 90° DS20°
LM-TP60W-A 3000K CRI97/90/80 60W <24 160lm/W 60° 90° DS20°
LM-TP70W-A 3000K CRI97/90/80 70W <24 160lm/W 60° 90° DS20°
LM-TP50W-A 4000K CRI97/90/80 50W <24 160lm/W 60° 90° DS20°
LM-TP60W-A 4000K CRI97/90/80 60W <24 160lm/W 60° 90° DS20°
LM-TP70W-A 4000K CRI97/90/80 70W <24 160lm/W 60° 90° DS20°
