Luminaire housing from extruded aluminium profile with 60mm wide light exit; Designed for continuous lighting systems suitable for office or public lighting Individial or continous row Plan UGR<19(Microprismatic ) and UGR<16 (LENS+Grille Reflector) Indirect/direct & Direct option Recessed with narrow trim Customized design available
Product family description

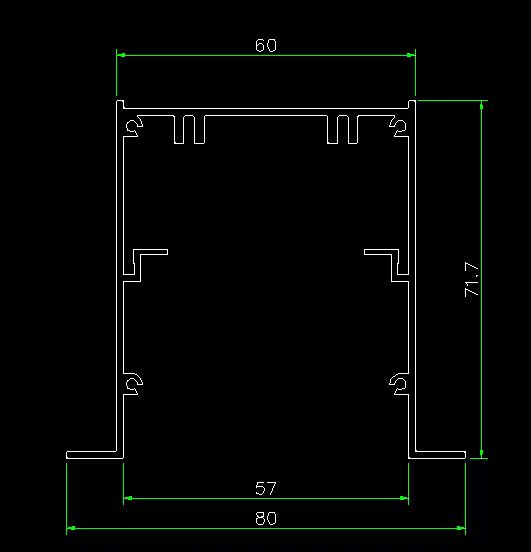

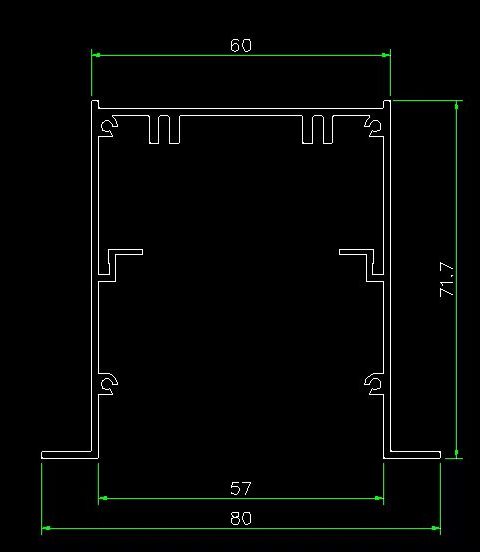

- Luminaire housing from extruded aluminium profile with 60mm wide light exit;
- Designed for continuous lighting systems suitable for office or public lighting
- Individial or continous row Plan

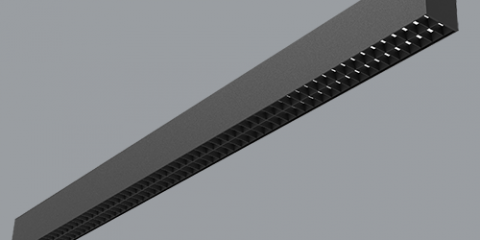

- UGR<19(Microprismatic ) and UGR<16 (LENS+Grille Reflector)
- Indirect/direct & Direct option
- Surface white powder coated; luminaire profile with pre-assembled converter unit can be pre-mounted; light inset can be installed without tools;

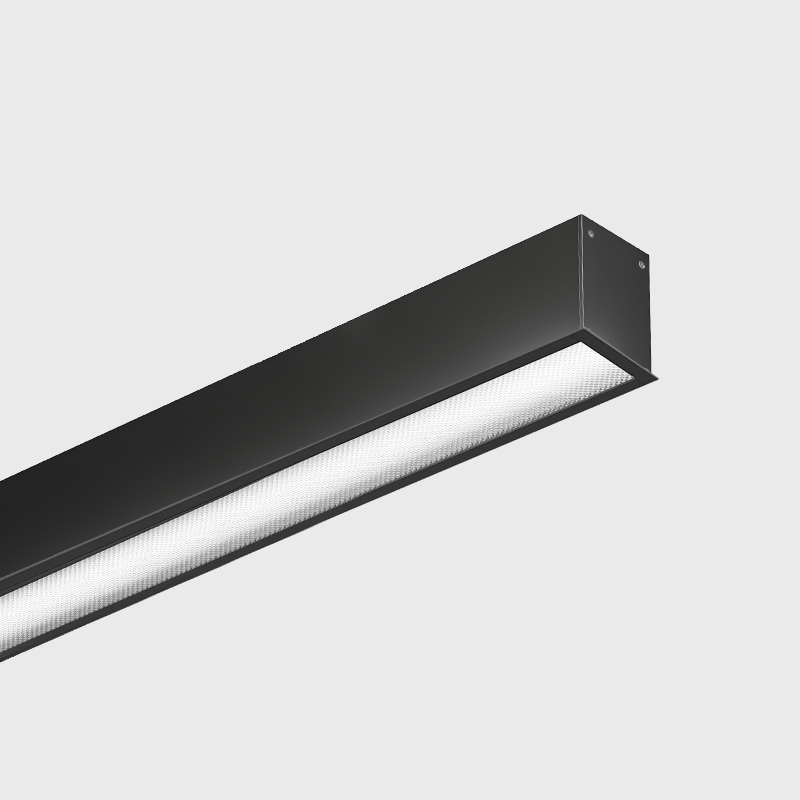

- High Performance Opalcover for uniform illumination; micro prismatic PMMA diffuser incl. diffuser film for homogeneous illumination and reduced luminance;
- Energy-efficient LEDs with very good colour rendering; binning initial ≤ 3 MacAdam; available in the light colours 3000K and 4000K; CRI≥ 80; min. 90 % of the luminous flux after 50000 hours;
- Protection IP 20; IO40
- optionally non-dimmable or DALI-2 control
|
Housing materials |
6063 extrusion aluminum alloy |
|
Size |
L1200*w60*H80mm; 21W L1200*w60*H80mm;37W L1500*w60*H80mm;40W L1500*w60*H80mm;50W |
|
Housing color |
Black, White, |
|
Light source |
high efficiency SMD 2835 |
|
Color |
Warm white, neutral white, cool white |
|
Kelvin |
3000K/4000K/Tunable White |
|
CRI |
80+,90+, |
|
Luminous efficiency |
150lm/W @CRI80 ,130lm/W (Grille) |
|
Beam angle |
120°(Opal diffuser);120°(Microprismatic UGR<19) |
|
Warranty |
5 years |
|
Finish |
Matt White; Black |
|
Voltage |
AC200-240V |
|
Dimming |
DALI2, 0/1-10V, |
|
Driver |
PF>0.95 flicker-free isolated constant current driver |
|
Installation |

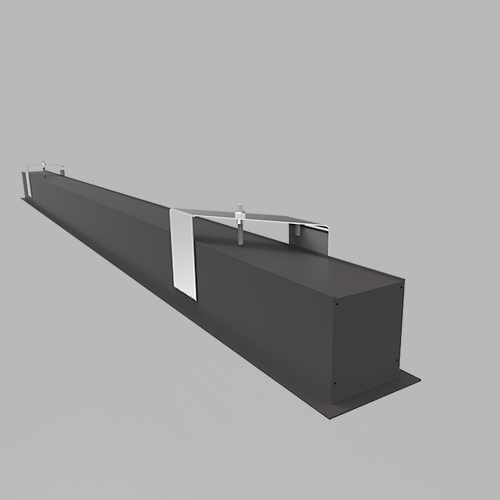

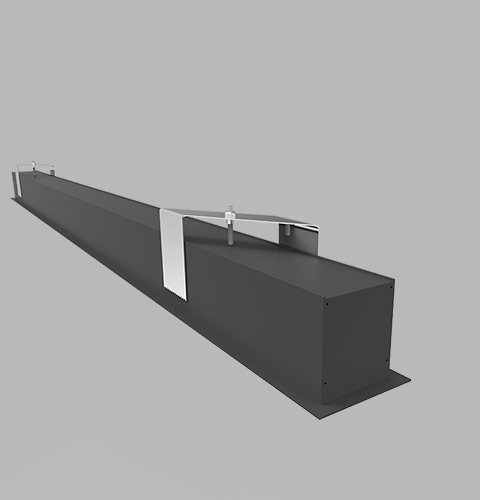

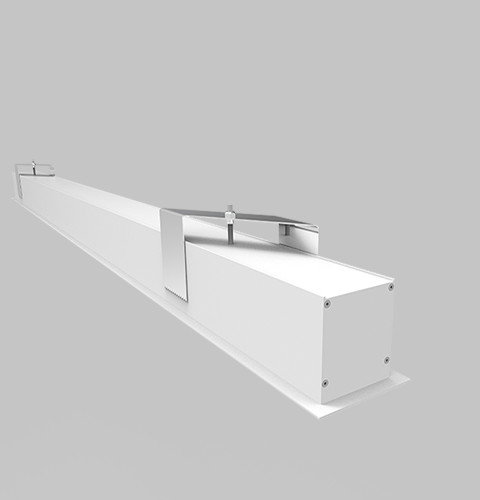

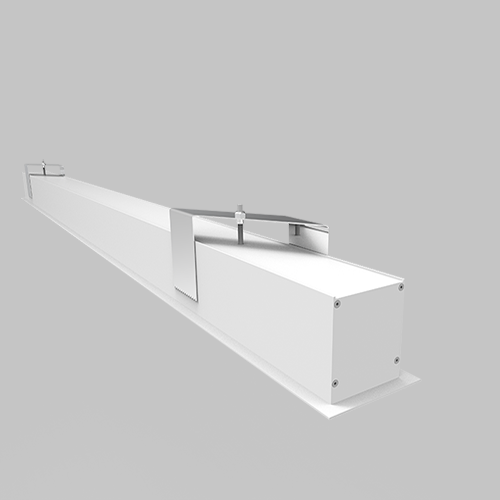

Recessed |
|
Certificate |
CE ,ROHS,SAA ,UKCA |
