-High efficiency 120-130lm/W -Ceiling light is with AL6063 aluminum housing -Opal or Microprismatic diffuser UGR<16 -100% Direct , 25% indirect& 75% direct -350mm,450mm, 600mm, 900mm, 1200mm option -Color Temperature 3000K 4000K -2/3 CCT Dipswitch adjustment or Tunable white -Indirect and direct light seperated Control -Multiple Color finishes available -multiple installation ways available as surface mounted, recessed, Suspended -5 Year Warranty

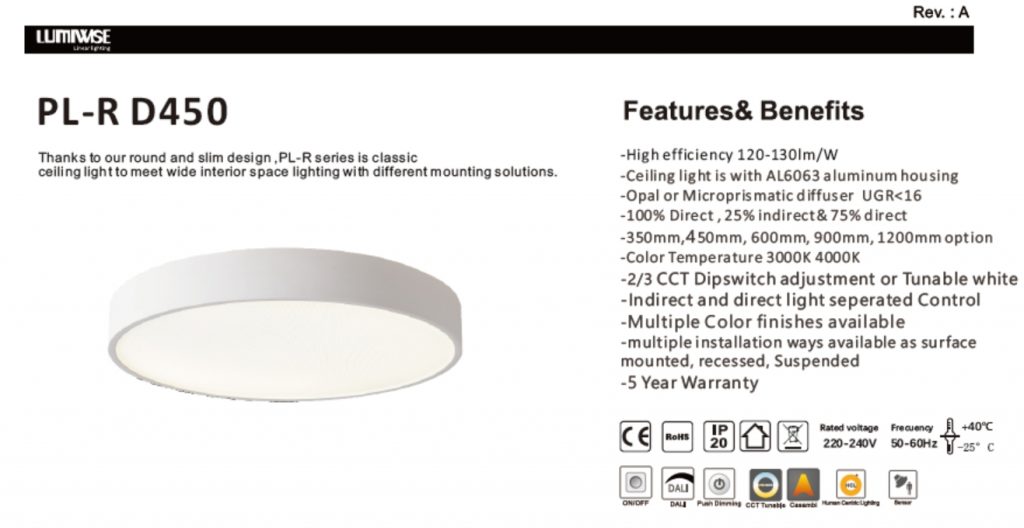

Features& Benefites:
-High efficiency 120-130lm/W
-Ceiling light is with AL6063 aluminum housing

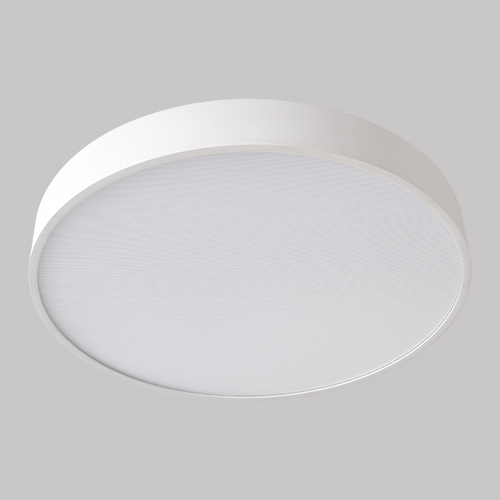

-Opal or Microprismatic diffuser UGR<16
-100% Direct , 25% indirect& 75% direct
-350mm,450mm, 600mm, 900mm, 1200mm option
-Color Temperature 3000K 4000K
-2/3 CCT Dipswitch adjustment or Tunable white
-Indirect and direct light seperated Control
-Multiple Color finishes available

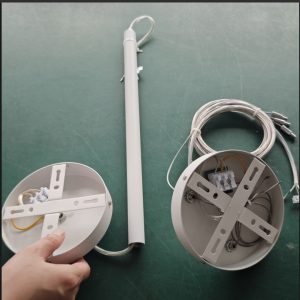

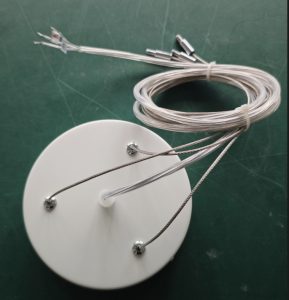

-multiple installation ways available as surface
mounted, recessed, Suspended
-5 Year Warranty

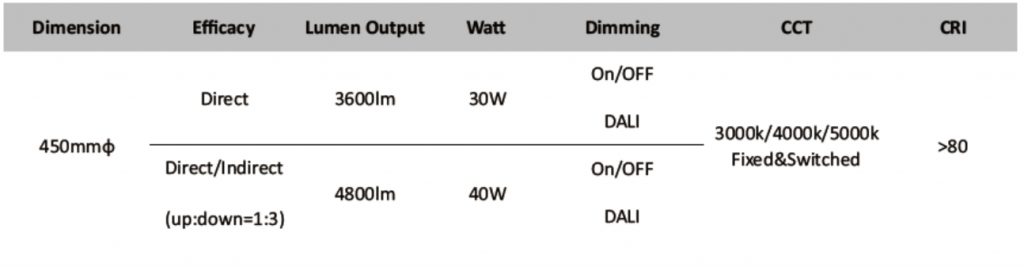

Technical Data
General

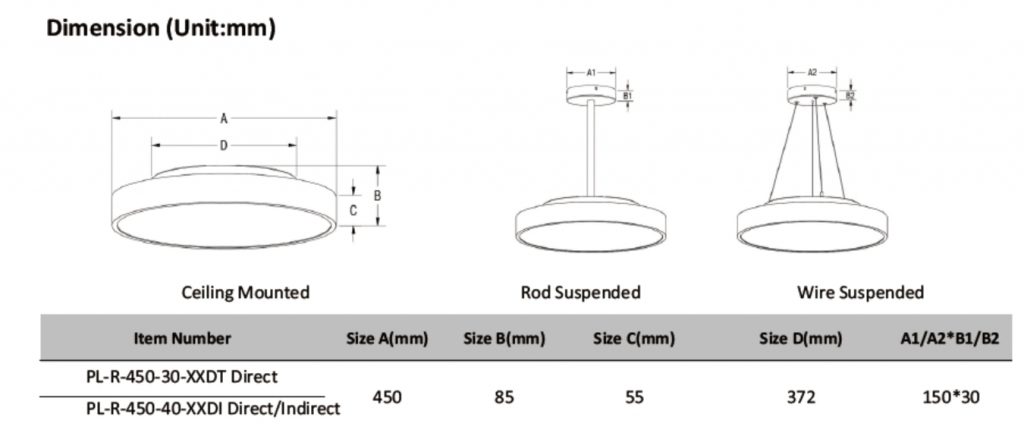

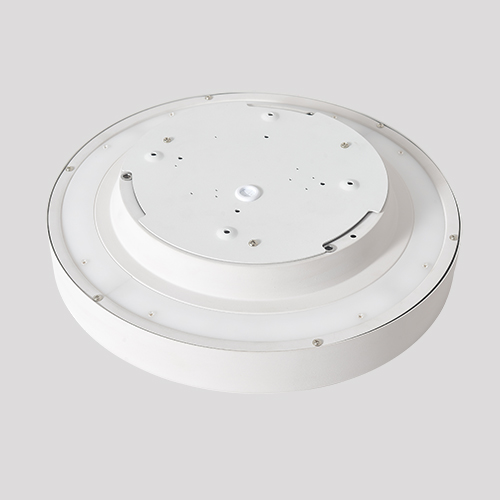

Size :D450*H85mm
Color :White(RAL9016),Black(RAL9005) as standard, other finish available on request
Material :Aluminum + PMMA Microprismatic
Electrical
Efficacy: 120lm/W
Voltage: AC220-240V
Wattage:30W-40w (lumen output tolerance +-5%, power tolerance +-5%)
Frequency:50/60Hz
THD:<20%
Optics
Lumen Output 3600-4800lm
CCT 3000K/4000K/5000K&2&3CCT selectable, 2700K-6500K Tunable White
Light Source SMD2835
CRI >80Ra as standard(>90Ra available)

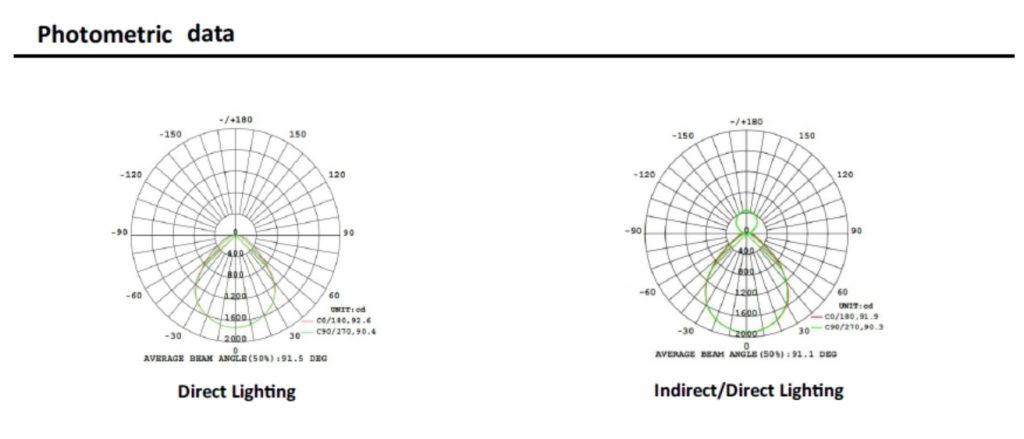

Beam Angle 90°/120° for downlight; 120° for uplight
SDCM <5 as standard(<3 available)
Durability
Lifespan 50,000H(L80,Tc＝55°C)
Warranty 5 years
Operation temperature:-20~+40°C
IP Protection:IP20
IK protection:IK02
Functions
Dimmable
No dimming/DALI as standard
Tunable white, 3 CCT selectable available
Control Up and down lighting seperated control available
Sensor Motion sensor &Daylight sensor available under request
