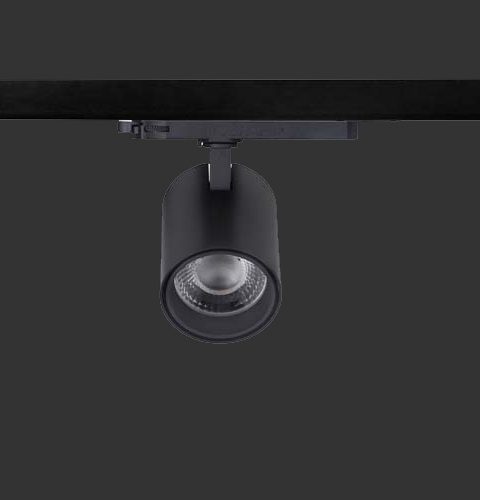

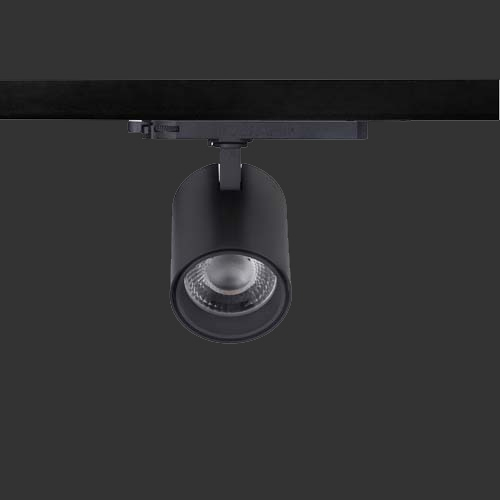

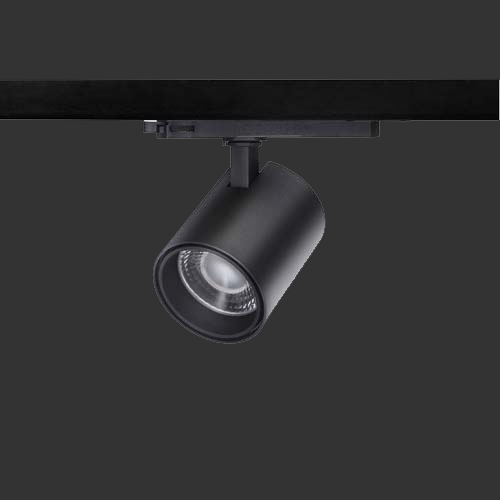

Driver-in-track spotlight family ,Power range 15W-40W with dipswitch ,1500-4500lm. High efficiency Bridgelux COB Module ,154lm/W ,system efficiency 100-130lm/W with high efficiency reflectors. 1)Adapter with integrated dimmable LED-Driver (DALI-2) and individual setting of output current via dipswitch. 2)The latest in-track driver series combines driver and adapter in one compact housing, which can be directly integrated into the track, making for an extremely pared-back spotlight design. 3)Driver in one compact adaptor housing instead of built in aluminum housing,the ambient temperaturewill be much lower, it is also an improvement of driver lifespan. 4)Low down maintenence cost,easy and fast to change the failed components.
Features:
TECHNICAL DATA
|
Housing materials |
ADC12 Die cast aluminum |
|
Size |
ΦD80xL108mm |
|
Housing color |
Black, White, Silver |
|
Light source |
COB LED |
|
Color |
Warm white, neutral white, cool white |
|
Kelvin |
2700K/3000K/4000K/5000K/3000k-5000K |
|
CRI |
80+,90+,97+ |
|
Luminous efficiency |
90-120lm/W @CRI80; |
|
Beam angle |
15°, 24°, 38°, 60° |
|
Adjustable |
Continuous 350° rotation and 90° titable |
|
Wattage |
15W,20W,25W,30W |
|
Voltage |
AC200-240V |
|
Dimming |
DALI, TRIAC, 0/1-10V, DMX, RF, ZigBee |
|
Driver |
PF>0.95 flicker-free isolated constant current driver |
|
Track adapter |
1/3 phase universal adapter |
|
Warranty |
3-5 years |
| Model No. | CCT | CRI | LED Power | System Power | LED Output | System Output |
| TL90IT10W | 2700K | CRI97/90/80 | 12.5W | 15W | 1750LM | 1500LM |
| TL90IT20W | 3000K | CRI97/90/80 | 18W | 20W | 2400LM | 2000LM |
| TL90IT20W | 4000K | CRI97/90/80 | 22.5W | 25W | 3000LM | 2500LM |
| TL90IT30W | 3000K | CRI97/90/80 | 27W | 30.5W | 3600LM | 3000LM |
| TL90IT35W | 4000K | CRI97/90/80 | 29.5W | 34.5W | 3900LM | 3400LM |
| TL90IT40W | 5000K | CRI97/90/80 | 34.5W | 39.5W | 4600LM | 3900LM |
| TL90IT45W | 6000K | CRI97/90/80 | 38.8W | 43.5W | 5200LM | 4400LM |
